Silica brick /Silica powder/ Silica hot repairing mix

Silica brick is the main refractory bricks widely used in glass melting furnace;

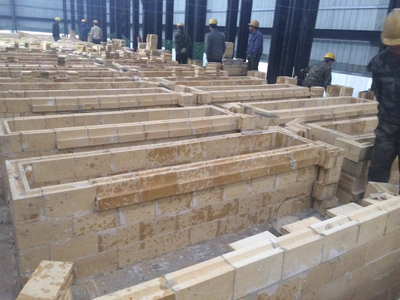

Silica brick for glass melting furnace is used in building checker chamber, chute, combustion chamber, coking chamber and furnace arch.
Quantity:
  • CSR/04
  • CHENSHI

Characteristic:

1. Good acid and erosion resistance, powerful anti high-temperature strength.

2. Soften melting temperature is 1680 °C.

3. Low thermal shock resistance.

4. Natural silica as raw material, plus regular mineralizer.

5. Ensure good bonding and structural strength of furnace.

6. Good heat resistance and long service life.

Application:

1. Silica brick is the main refractory bricks widely used in glass melting furnace;

2. Silica brick for glass melting furnace is used in building checker chamber, chute, combustion chamber, coking chamber and furnace arch.



Physical properties and chemical composition:

Item

Silica   brick

96A

96B

 Chemical composition

 SiO2

96%min

96%min

    Fe2O3

0.7%max

0.8%max

 Al2O3 +TiO2 +R2O

0.5%max

0.7%max

Refractoriness   °C

1710 °C

1710 °C

Apparent   Porosity %

21% max

21%max

Bulk density g/cm3

1.85 min

 1.8 min

True   density g/cm3

2.34   max

 2.34max

Cold   Crushing Strength, MPa ≥

35   min

35 min

0.2   Mpa refractoriness under load T0.6 °C

1680   °C min

1680 °C min

Permanent   Linear Change On Reheating

(%)   1500 °C X 2h

0- +0.3

0- +0.3

20-1000   °C Thermal Expansion 10-6/°C

1.25

1.25

Thermal   Conductivity (W/MK) 1000°C

1.44

1.44



Common size: L×W×H (mm) 230×114×65  171×114×65

Other size can supply according to clients’ request.



Please note we also supply Silica powder and Silica hot repairing mix.
